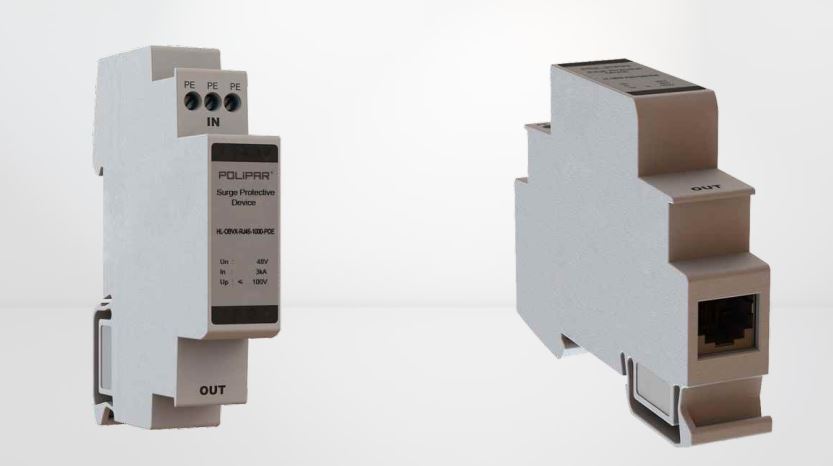

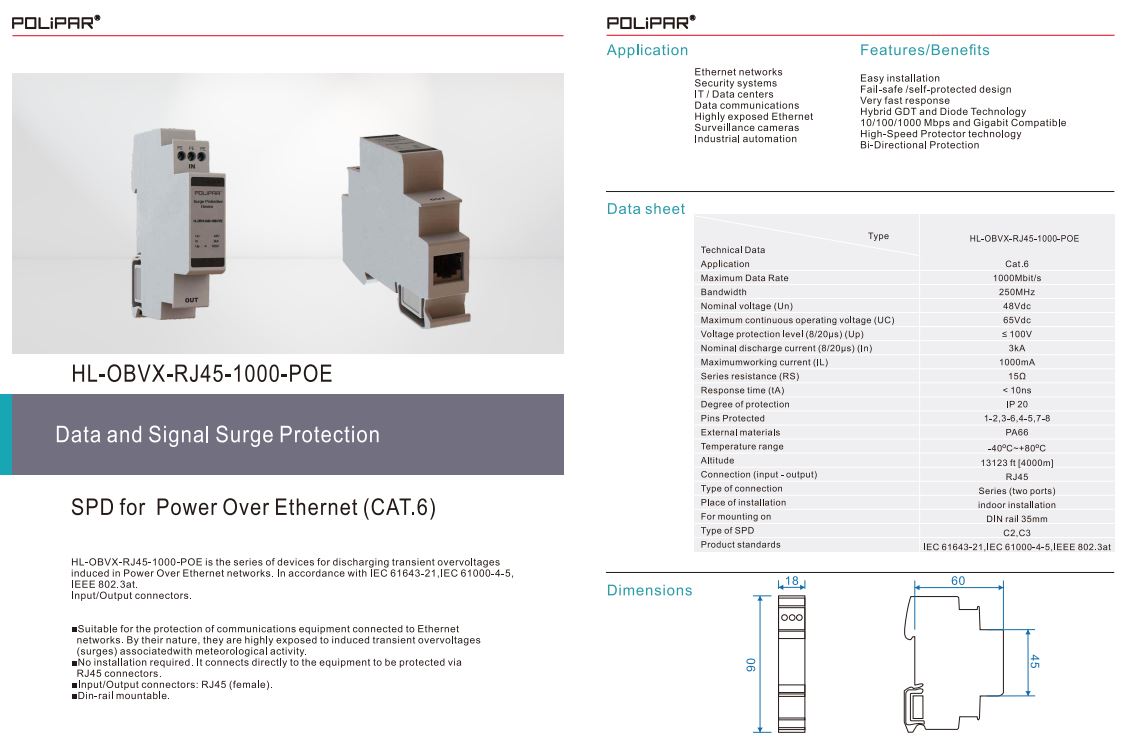

HL-OBVX-RJ-1000-POE SPD FOR POWER OVER ETHERNET (CAT.6) DIN-Rail
Eklenme Tarihi 4.08.2020
HL-OBVX-RJ-1000-POE is the series of devices for discharging transient overvoltages induceed in Power Over Ethernet networks. In accordance with IEC 61643-21, IEC 61000-4-5, IEEE 802.3at.
Input/Output connectors.
- Suitable fort he protection of communications equipment connected to Ethernet networks. By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.
- No installation required. It connects directly to the equipment to be protected via RJ45 connectors.
- Input/Output connectors: RJ45 (female).
- DIN-Rail Mountable.
Application
- Ethernet networks
- Security systems
- IT/Data centers
- Data communications
- Highly exposed Ethernet
- Surveillance cameras
- Industrial automation
Features/Benefits
- Easy installation
- Fail-safe / self-protected design
- Very fast response
- Hybrid GDT and Diode Technology
- Bi-Directional Protection
- Shielded Enclosure and Connectors.
