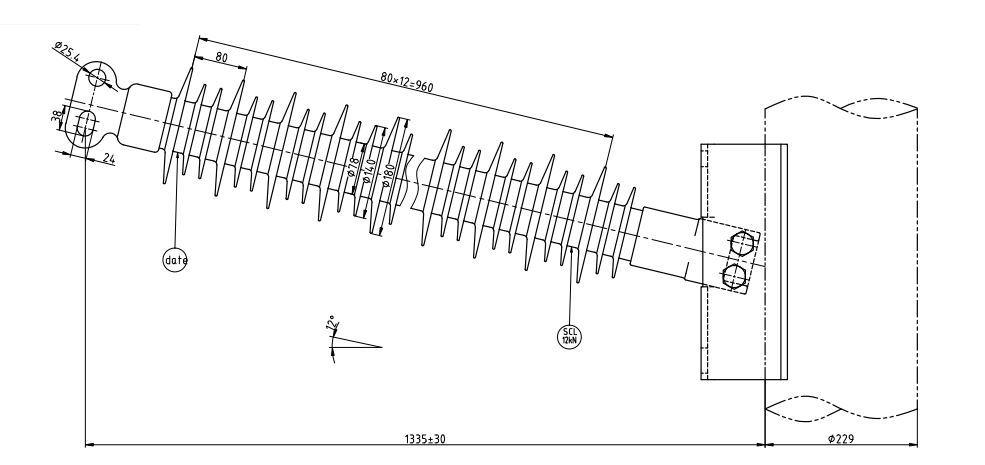

HS Series 132 kV 12 kN Composite Post Insulator
These insulators are preferred because of their advantages, areas close to the sea and industrial pollution in regions of high hydrophobic properties to the high insulation to provide better, be impenetrable type, easy assembly, according to the porcelai insulator and glass insulator to the lighter.
|
Technical Features |
Unit |
132 kV 12 kN |
|
Total Leakage Current Length |
mm |
: 3200 |
|
Tensile Strength Frequency Humid in 1 Minute |
kV |
: 250 |
|
Resistence to Lightning Stroke |
kVpeak |
: 550 |
|
Specified Cantilever Load |
kN |
: 12 |
|
Rated Frequency |
Hz |
: 50 |
|
Maximum Design Cantilever Load |
kN |
: 6 |
|
Specified Tension Load |
kN |
: 70 kN |
|
Silicon Color |
: HTV / light grey |
|
|
Dry Arc Distance |
: 1100 mm |
|
|
Applied Standards |
: IEC 61952 | |
|
|
|
|
