Description:
Fuse cutout is suitable for high voltage distribution lines and transformers, acting as an overload protector and a device for opening and closing load current. All the metal parts of the fuse cutout are free from erosion and rust. The fuse cutout is developed to fit common service conditions and applications.
Features:
1.Secure over-current protection.
2. High mechanical strength.
3. Advanced design of fuse tube.
4. Easy for installation.
POLIPAR CODE and Rated Voltage ,kV |
HDF 12/15kV-100A |
HDF 12/15kV-200A |
HDF 24/27kV-100A |
HDF 24/27kV-200A |
HDF 36/30kV-100A |
HDF 36/30kV-200A |
Rated Current, A |
100 |
200 |
100 |
200 |
100 |
200 |
Rated Breaking current, A |
8 |
8 |
8 |
8 |
8 |
8 |
BIL, kV |
110 |
110 |
150 |
150 |
200 |
200 |
Power frequency withstand voltage (dry 1min), kV |
55 |
55 |
70 |
70 |
95 |
95 |
Leakage Distance, mm |
440 |
440 |
600 |
600 |
790 |
790 |
Height H, mm |
405 |
405 |
500 |
500 |
600 |
600 |
Tube length L, mm |
310 |
310 |
380 |
380 |
480 |
480 |
Weight, kg |
3.6 |
4.0 |
4.6 |
4.6 |
5.6 |
5.8 |

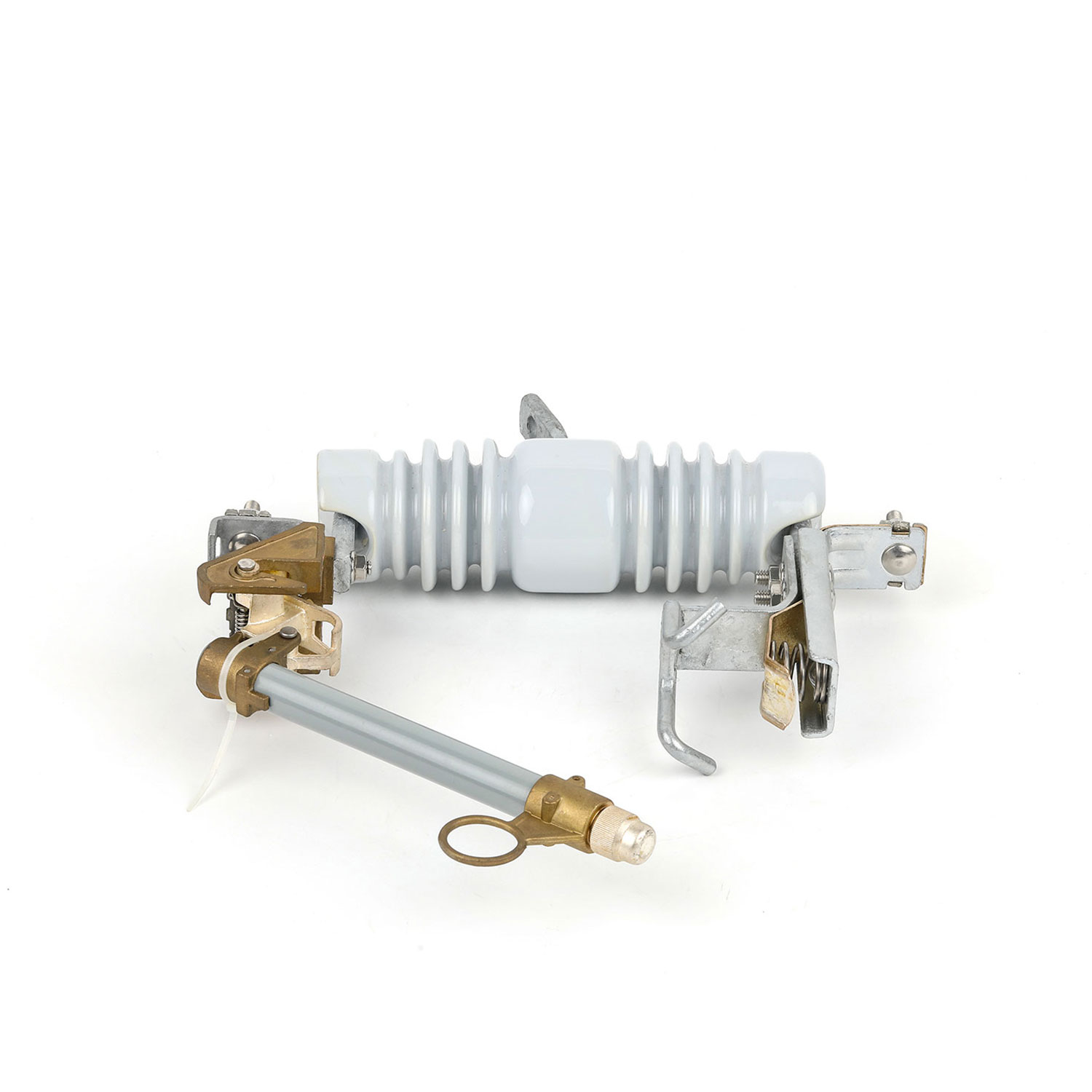

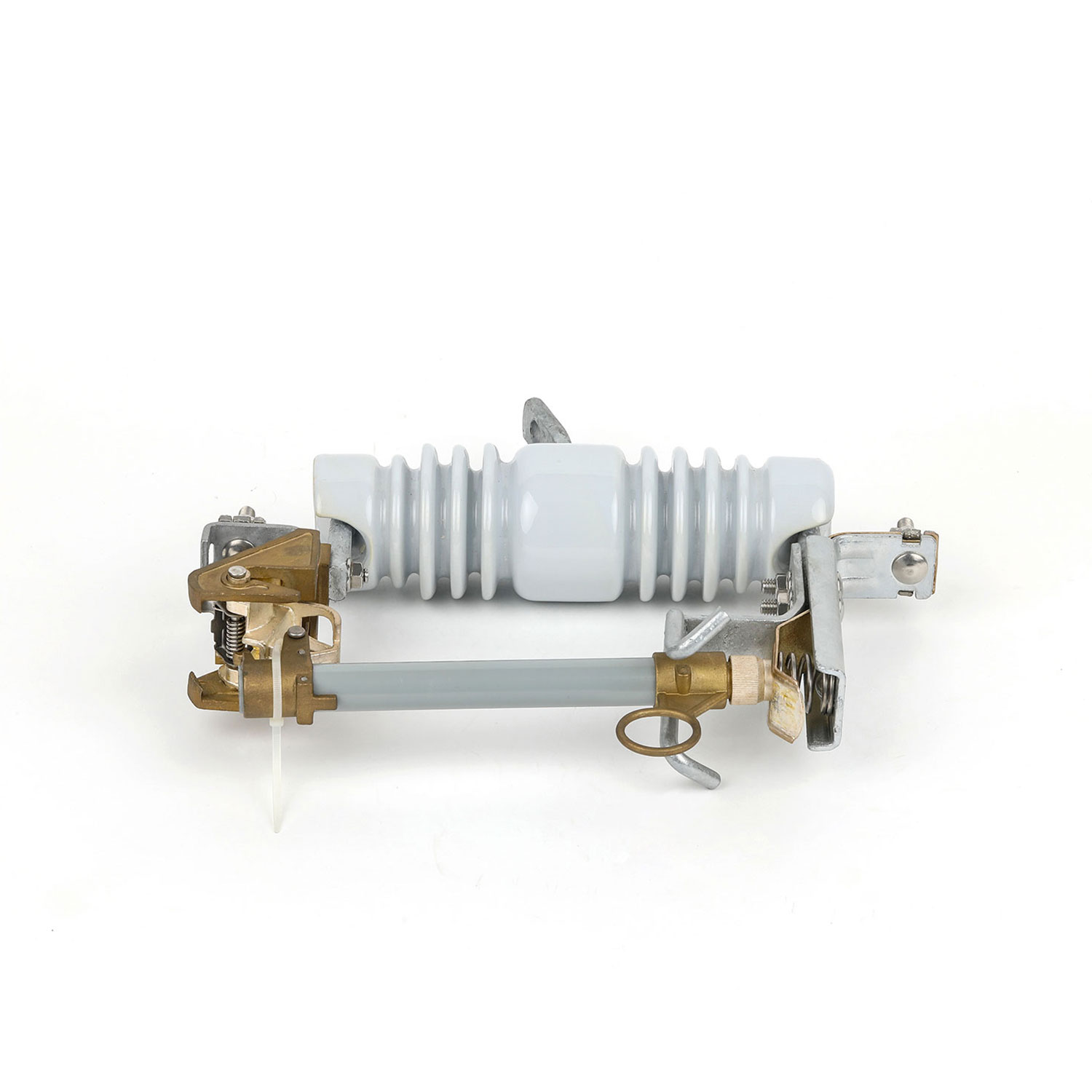

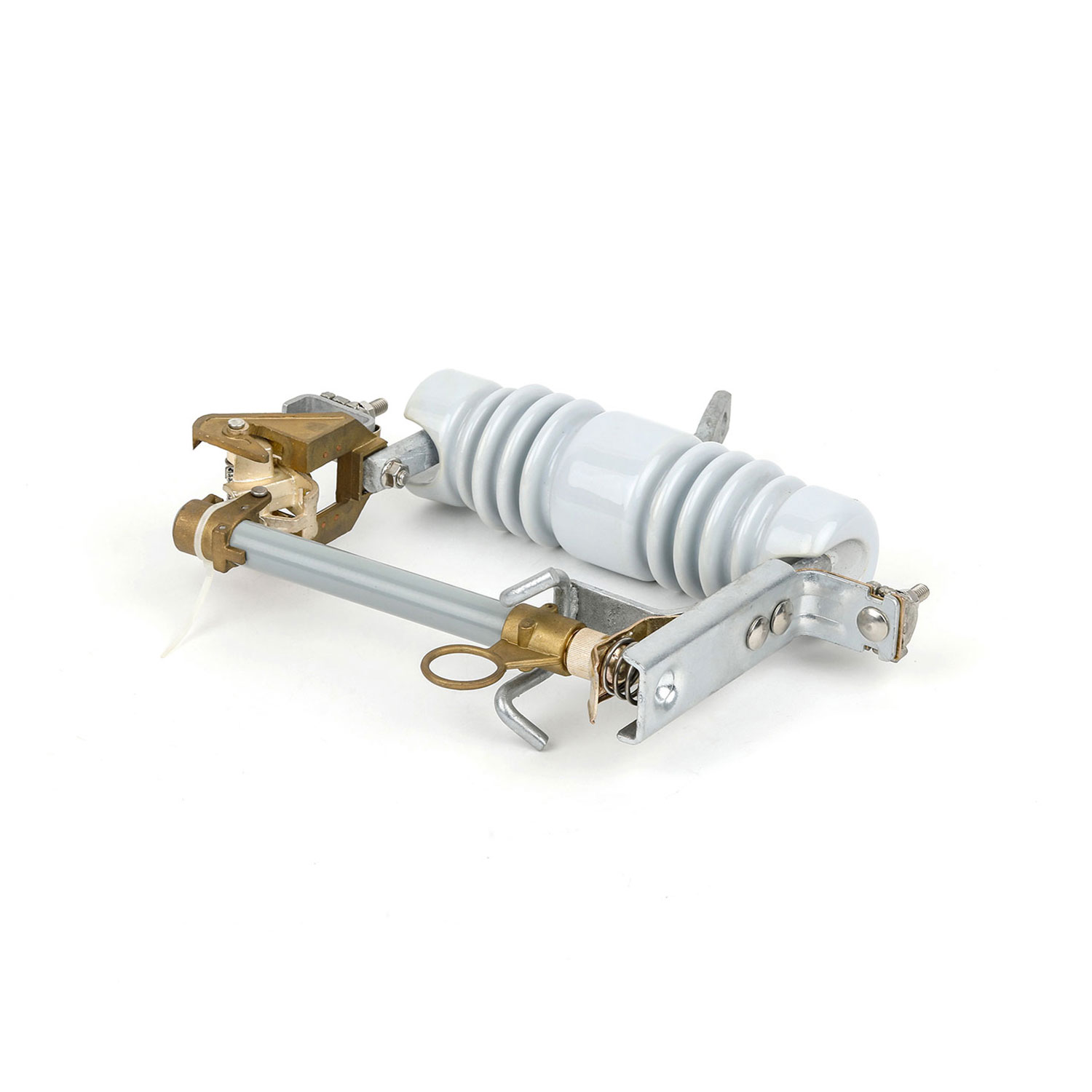

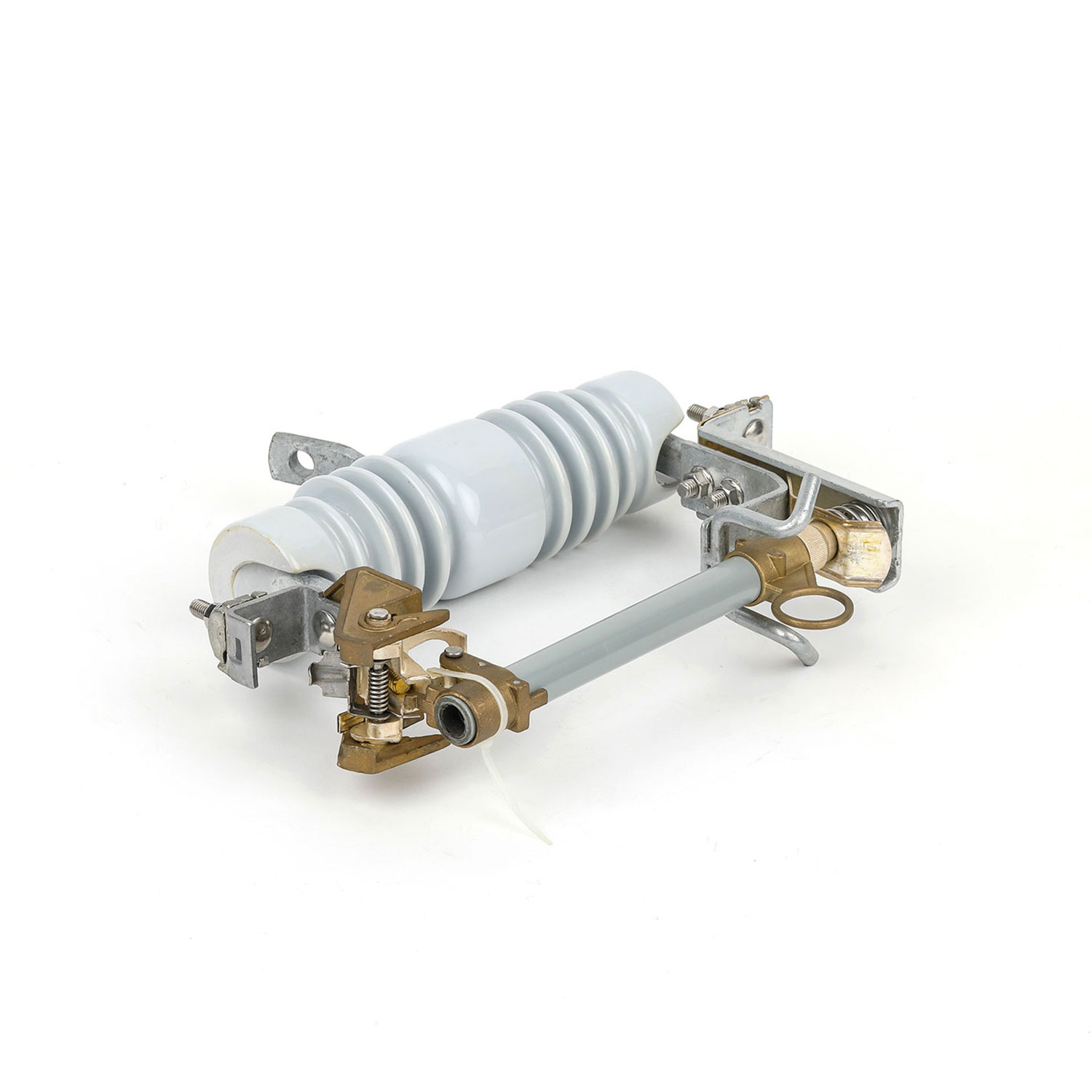

12 kV Cut-Out
