The HD series porcelain housing high voltage surge arresters provide excellent protection against over-voltage pulses. Although the porcelain housing has lost its popularity in the old and electricity distribution systems, we are able to produce in a way that can meet the needs of our customers.
Our main product groups:
3 – 51 kV SL & SM (Class 2 & Class 3, 10 kA) Porcelain Housing Surge Arresters
51 – 420 kV SL & SM (Class 2 & Class 3, 10 kA) Porcelain Housing Surge Arresters
You can find technical information about our standard production in our catalog.
Class 2 (SL) Characteristic Features
Rated Voltage
Ur kV(rms) |
Max. Continuous Operating Voltage
Uc kV(rms) |
Temporary Over voltage Capability
kV(rms) |
Max. Steep Current Protective level at 10kA
kV(peak) |
Max. Switching protective level
kV(peak) |
Max. lightning discharge voltage at 8/20 µs
kV(peak) |
|||
250 A |
1000 A |
5 kA |
10 kA |
20 kA |
||||
3 |
2,5 |
3,4 |
8,6 |
6,3 |
6,7 |
7,5 |
8,1 |
9,0 |
6 |
5,1 |
6,9 |
17,7 |
12,6 |
13,5 |
15,0 |
16,2 |
17,9 |
9 |
7,5 |
10,4 |
25,4 |
18,9 |
20,2 |
22,6 |
24,4 |
27,0 |
10 |
8,4 |
11,5 |
28,2 |
20,7 |
22,2 |
24,9 |
26,9 |
29,8 |
12 |
10,2 |
13,8 |
33,9 |
25,2 |
26,9 |
29,9 |
32,3 |
35,8 |
15 |
12 |
17,3 |
42,4 |
31,3 |
33,5 |
37,6 |
40,6 |
44,9 |
18 |
15,3 |
20,7 |
50,8 |
37,7 |
40,4 |
45,2 |
48,8 |
54,0 |
21 |
17 |
24,2 |
59,3 |
41,9 |
44,9 |
49,9 |
53,8 |
59,6 |
24 |
19,5 |
27,6 |
67,8 |
48,1 |
51,5 |
58,5 |
64,6 |
71,5 |
27 |
22 |
31,1 |
76,2 |
54,3 |
58,1 |
67,9 |
73,2 |
81,0 |
30 |
24,4 |
34,5 |
84,7 |
60 |
64,4 |
74,8 |
80,7 |
89,3 |
33 |
27 |
38,0 |
93,2 |
67 |
72,6 |
81,5 |
87,5 |
93,5 |
36 |
29 |
41,4 |
101,6 |
71 |
75 |
89 |
96 |
107 |
42 |
34 |
48,3 |
118,6 |
83 |
89 |
95 |
103 |
114 |
45 |
36 |
51,8 |
127,1 |
90 |
96 |
110 |
118 |
131 |
54 |
44 |
59 |
150 |
100 |
105 |
127 |
137 |
151 |
60 |
49 |
68 |
171 |
110 |
115 |
145 |
156 |
173 |
66 |
54 |
73 |
186 |
120 |
130 |
160 |
173 |
191 |
72 |
59 |
83 |
205 |
130 |
140 |
172 |
186 |
205 |
90 |
73 |
102 |
225 |
165 |
175 |
217 |
234 |
258 |
96 |
78 |
111 |
245 |
175 |
187 |
229 |
247 |
274 |
108 |
88 |
122 |
304 |
200 |
210 |
253 |
273 |
302 |
120 |
98 |
138 |
342 |
225 |
235 |
295 |
318 |
353 |
132 |
107 |
152 |
373 |
245 |
255 |
320 |
345 |
382 |
144 |
117 |
165 |
398 |
265 |
280 |
347 |
374 |
472 |
Class 3 (SM) Characteristic Features
Type |
Rated Voltage
Ur kV(rms) |
Max. Continuous Operating Voltage
Uc kV(rms) |
Temporary Over voltage Capability
kV(rms) |
Max. Steep Current Protective level at 10kA
kV(peak) |
Max. Switching protective level
kV(peak) |
Max. lightning discharge voltage at 8/20 µs
kV(peak) |
|||
250 A |
1000 A |
5 kA |
10 kA |
20 kA |
|||||
HY 36 |
36 |
29 |
43 |
92 |
66 |
71 |
81 |
88 |
95 |
HY 42 |
42 |
34 |
50 |
109 |
78 |
83 |
95 |
104 |
112 |
HY 45 |
45 |
36 |
53 |
117 |
84 |
89 |
103 |
111 |
121 |
HY 54 |
54 |
44 |
60 |
140 |
104 |
108 |
122 |
130 |
141 |
HY 60 |
60 |
49 |
70 |
160 |
116 |
119 |
136 |
144 |
166 |
HY 66 |
66 |
54 |
75 |
175 |
126 |
131 |
148 |
158 |
171 |
HY 72 |
72 |
59 |
85 |
190 |
138 |
143 |
162 |
173 |
188 |
HY 90 |
90 |
73 |
105 |
225 |
172 |
179 |
202 |
216 |
234 |
HY 96 |
96 |
78 |
115 |
240 |
183 |
190 |
216 |
230 |
249 |
HY 108 |
108 |
88 |
125 |
287 |
206 |
214 |
242 |
269 |
280 |
HY 120 |
120 |
98 |
142 |
320 |
228 |
238 |
268 |
287 |
311 |
HY 132 |
132 |
107 |
155 |
355 |
251 |
262 |
296 |
316 |
342 |
HY 144 |
144 |
117 |
170 |
380 |
274 |
286 |
322 |
345 |
373 |
HY 168 |
168 |
137 |
195 |
445 |
319 |
333 |
376 |
402 |
435 |
HY 172 |
172 |
140 |
200 |
455 |
326 |
352 |
385 |
415 |
451 |
HY 180 |
180 |
146 |
210 |
477 |
342 |
367 |
402 |
431 |
466 |
HY 192 |
192 |
156 |
226 |
509 |
365 |
380 |
429 |
460 |
498 |
HY 228 |
228 |
185 |
270 |
605 |
433 |
461 |
509 |
546 |
591 |
HY 240 |
240 |
194 |
283 |
635 |
456 |
476 |
535 |
574 |
621 |
HY 258 |
258 |
210 |
300 |
680 |
490 |
510 |
576 |
617 |
667 |
HY 264 |
264 |
215 |
310 |
695 |
502 |
523 |
590 |
632 |
684 |
HY 276 |
276 |
224 |
325 |
730 |
524 |
546 |
616 |
660 |
714 |
HY 288 |
288 |
233 |
340 |
760 |
547 |
570 |
643 |
689 |
746 |
HY 294 |
294 |
238 |
345 |
775 |
562 |
586 |
662 |
702 |
762 |
HY 300 |
300 |
243 |
355 |
795 |
578 |
602 |
681 |
715 |
785 |
HY 312 |
312 |
253 |
365 |
825 |
592 |
617 |
696 |
746 |
807 |
HY 336 |
336 |
272 |
395 |
890 |
638 |
665 |
750 |
804 |
870 |
HY 360 |
360 |
292 |
420 |
950 |
683 |
712 |
803 |
861 |
931 |
HY 372 |
372 |
297 |
433 |
980 |
692 |
736 |
830 |
890 |
963 |
HY 378 |
378 |
302 |
439 |
1000 |
703 |
747 |
843 |
901 |
978 |
HY 390 |
390 |
312 |
452 |
1022 |
725 |
771 |
870 |
933 |
1009 |
HY 396 |
396 |
316 |
459 |
1043 |
736 |
783 |
883 |
947 |
1024 |
HY 420 |
420 |
336 |
480 |
1082 |
781 |
831 |
937 |
1005 |
1087 |

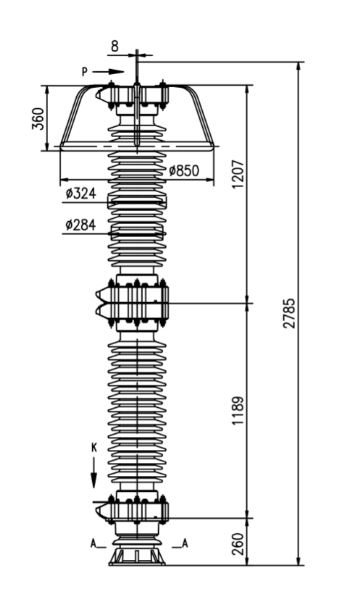

Drawing for 154 kV Surge Arrester

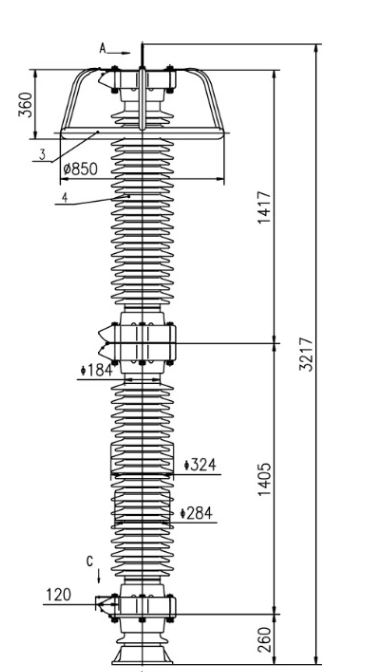

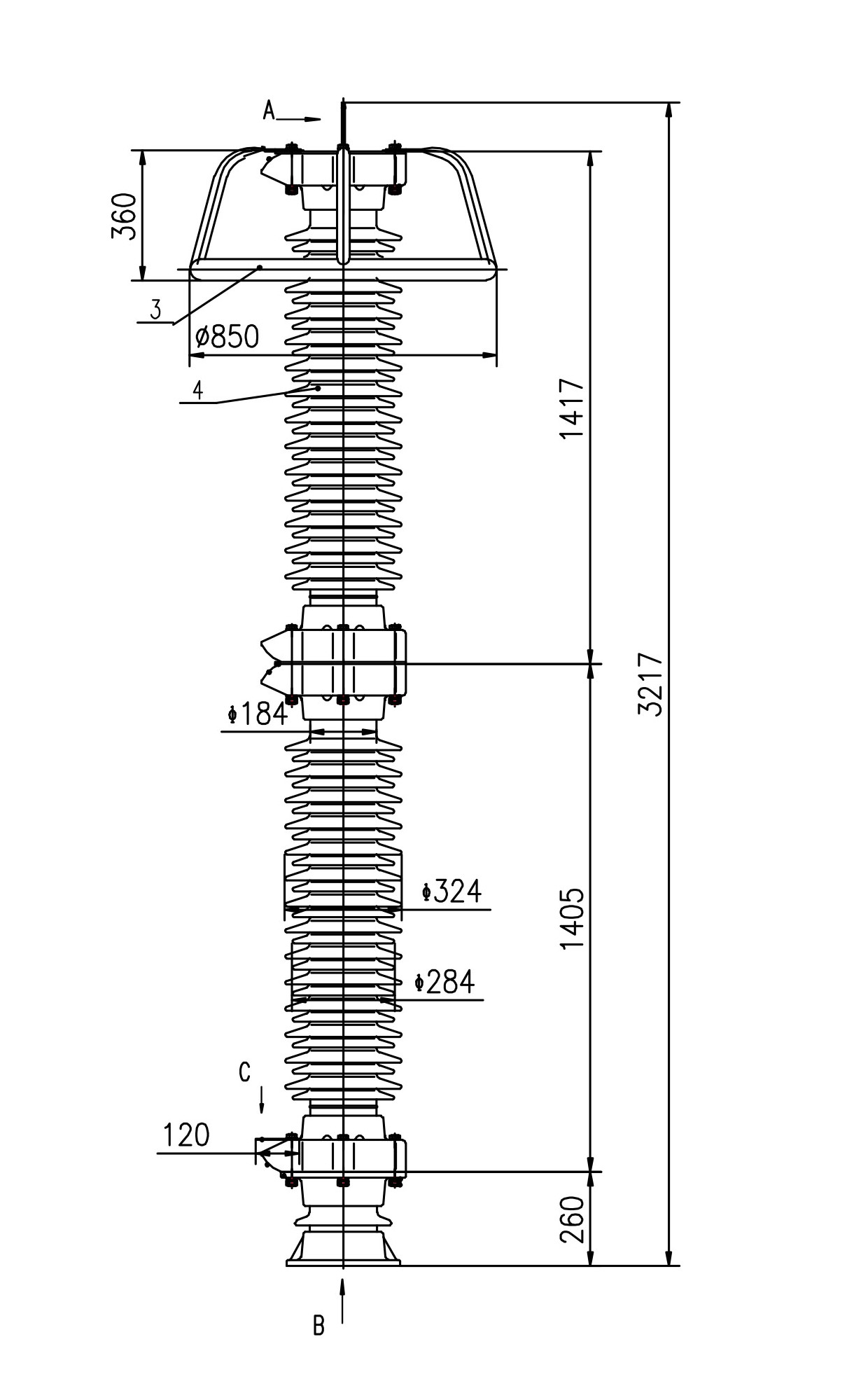

Drawing for 220 kV Surge Arrester

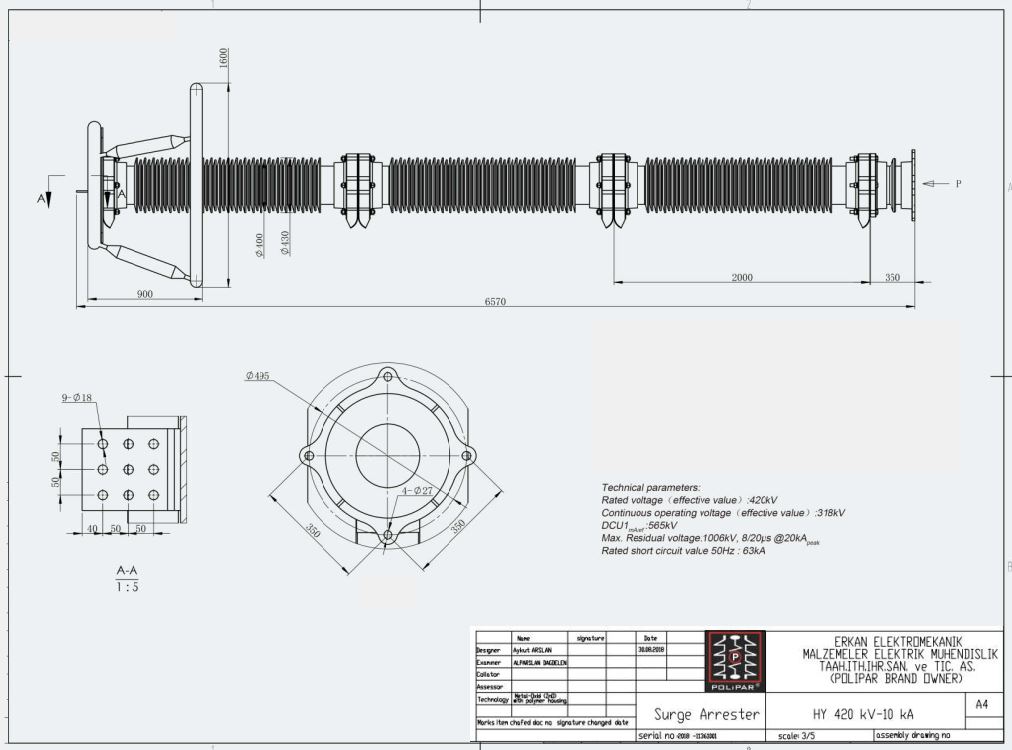

Drawing for 420 kV Surge Arrester
