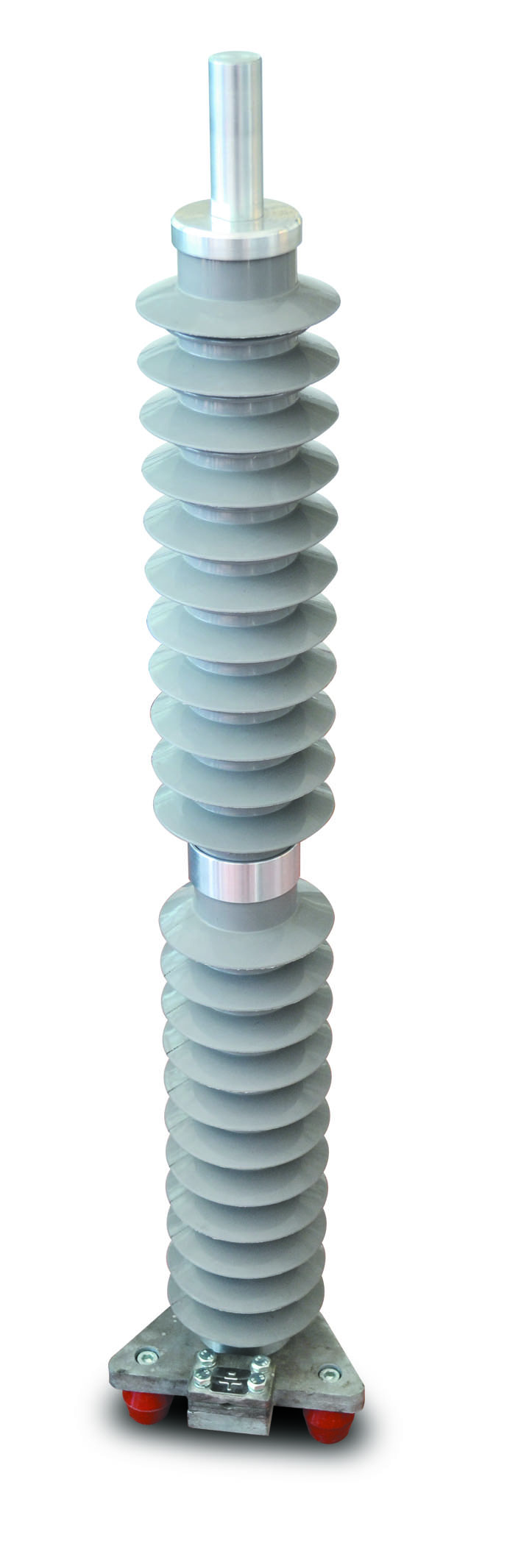

3 - 144 kV SL (Class 2) High Voltage Polymer Surge Arresters

Application of POLIPAR Metal-Oxide type arresters

>> As a result of over dose voltage and voltage collapse in the system, there exist a load loss on power supply therefore these overvoltage’s causes serious damages the system.

>> This voltage wave which exist in the system is a dangerous situation for modern industry in terms of delicate products in voltage oscillations.

>> It provides protection for control mechanism and transformers against to atmospheric and over switching voltages.

>> It provides high protection for delicate products and equipment according to surge arresters’ usage of system’s installation.

İlgili Resimler

İlgili Videolar

HY SERIES SL (CLASS 2) HIGH VOLTAGE POLYMER SURGE ARRESTER PROPERTIES

STANDART

: IEC 99-4

  TS EN 60099-4

NOMINAL DISCHARGE CURRENT

: 10 kA peak

RATED VOLTAGE

: 3 - 144 kV

HIGH CURRENTS IMPULSE CAPABILITY

: 100 kA (4/10 µs)

LINE DISCHARGE CLASS

: 2

SHORT CIRCUIT CAPABILITY

: 40-50 kA

MINIMUM ENERGY CAPABILITY

: 7.8 kj/kV (Ur)

HIGH CANTILEVER STRENGTH

: 1600

AC SYSTEM FREQUENCY

: 50Hz – 60Hz

THE ALTITUDE ABOVE SEA

: 1200 m

AMBIENT TEMPERATURES

:-55ºC,+55ºC
